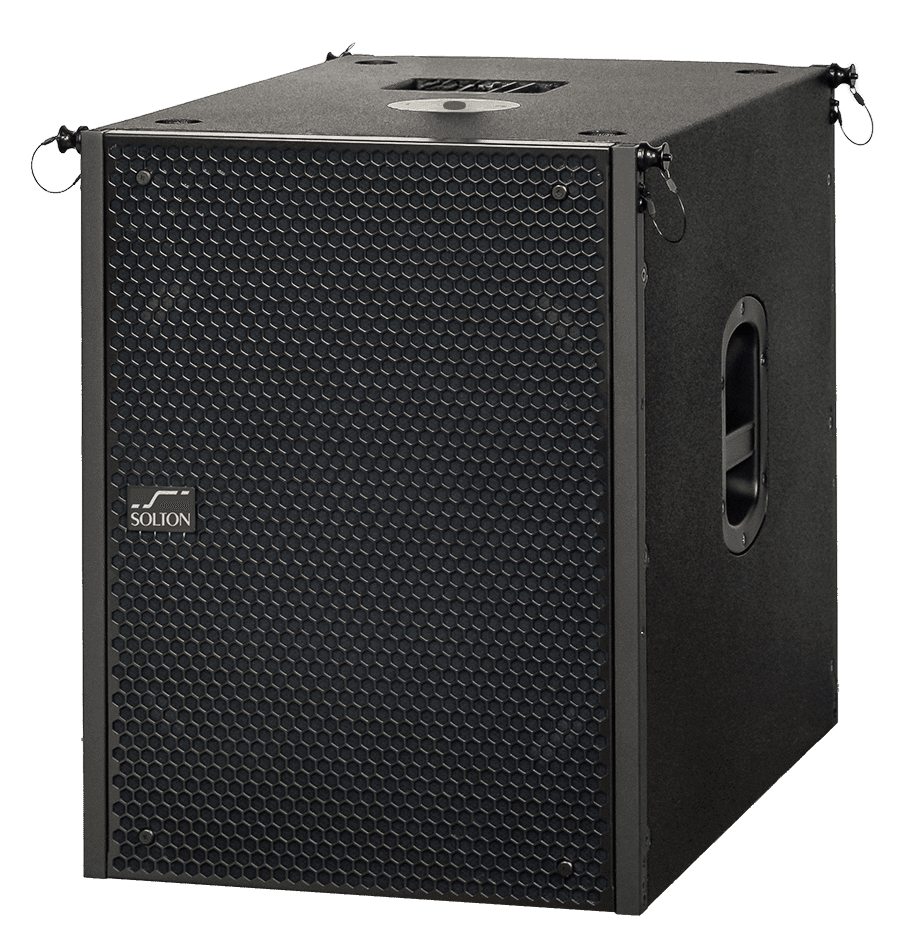

SUB K15 A – Powerful Subwoofer for Demanding Touring Applications
The SUB K15 A is a high-performance active subwoofer, specifically engineered for professional touring applications both indoors and outdoors. It delivers powerful, precise low-frequency reproduction and integrates seamlessly into demanding sound reinforcement systems. Featuring a long-excursion 15" subwoofer housed in a compact bass reflex enclosure, the SUB K15 A provides impressive low-end performance with exceptional clarity and impact. The custom-designed reflex ports with a large frontal area effectively reduce air turbulence, ensuring clean and distortion-free output even at very high sound pressure levels. The integrated 1000-watt Class-D amplifier offers excellent performance with high efficiency and ample headroom. This is complemented by an advanced DSP system with FIR filtering, enabling precise control and finely tuned sound optimization. Despite its powerful output, the SUB K15 A stands out with its low weight, making it ideal for easy transport, handling, and flexible deployment. Whether used individually, stacked, or flown using dedicated pole mounts or fly bars, the system provides maximum versatility for a wide range of applications. With an IP45 rating, the SUB K15 A is well-suited for demanding outdoor environments. Perfect Low-Frequency Extension The SUB K15 A significantly extends the low-frequency range of your system, delivering deep, powerful bass and a solid acoustic foundation. When paired with KARAT K4 A mid-high systems, it ensures a balanced, full-range sound with outstanding low-frequency impact.
Selfpowered operation

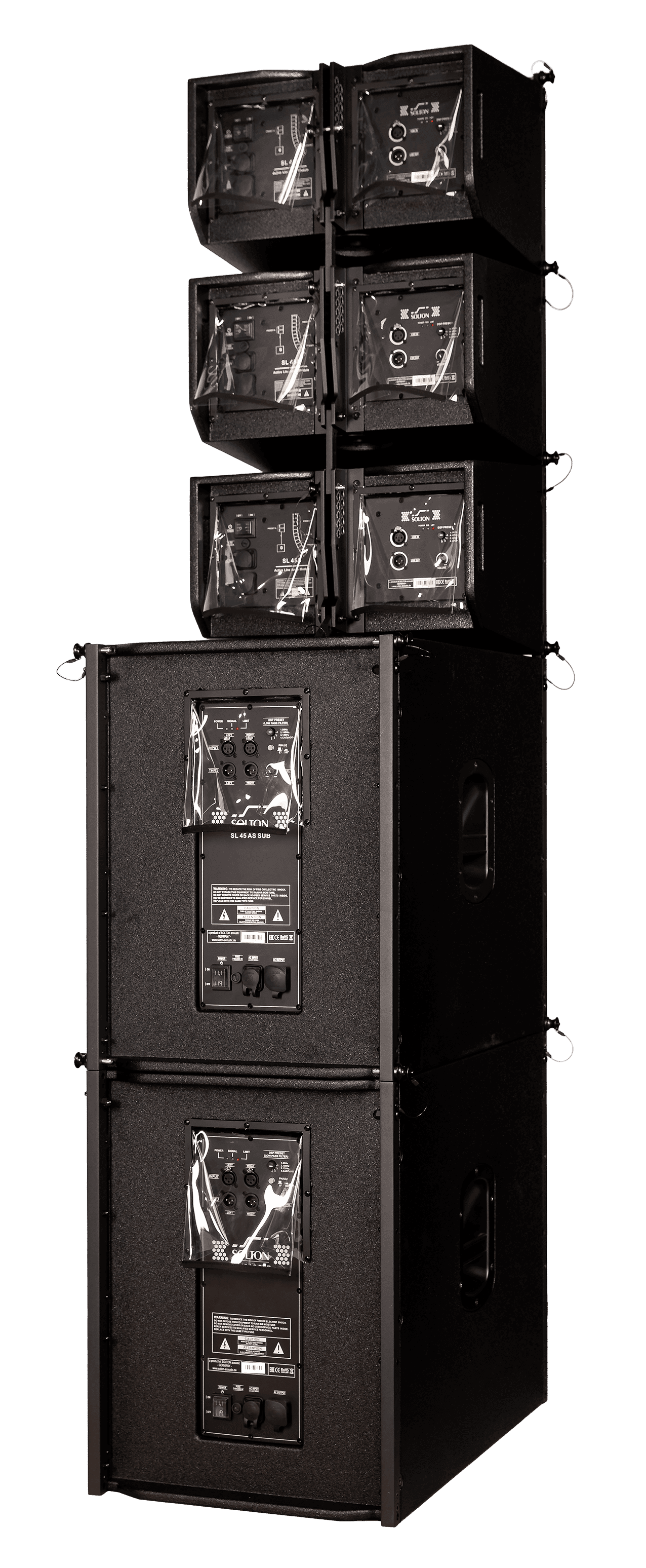

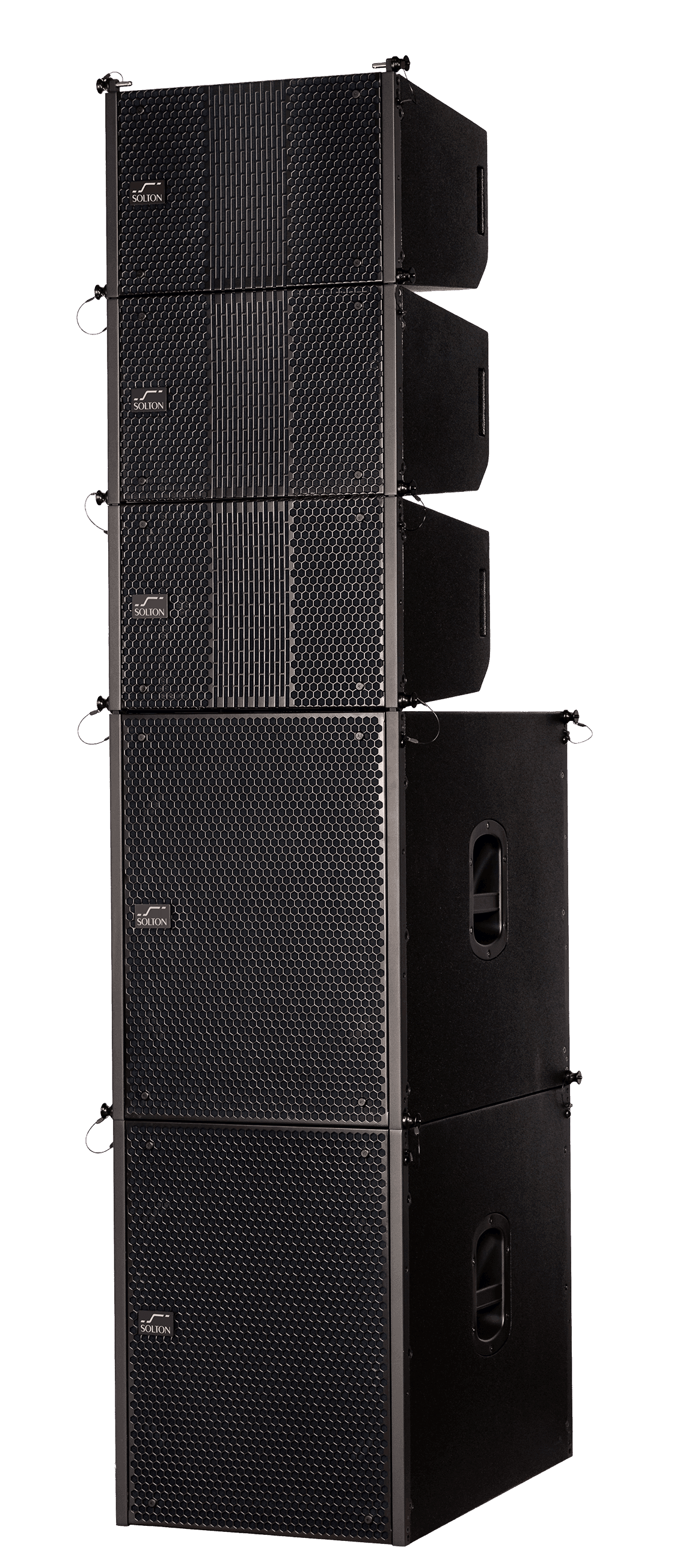

Stacked operation possible
IP45 rating
FIR Filtering

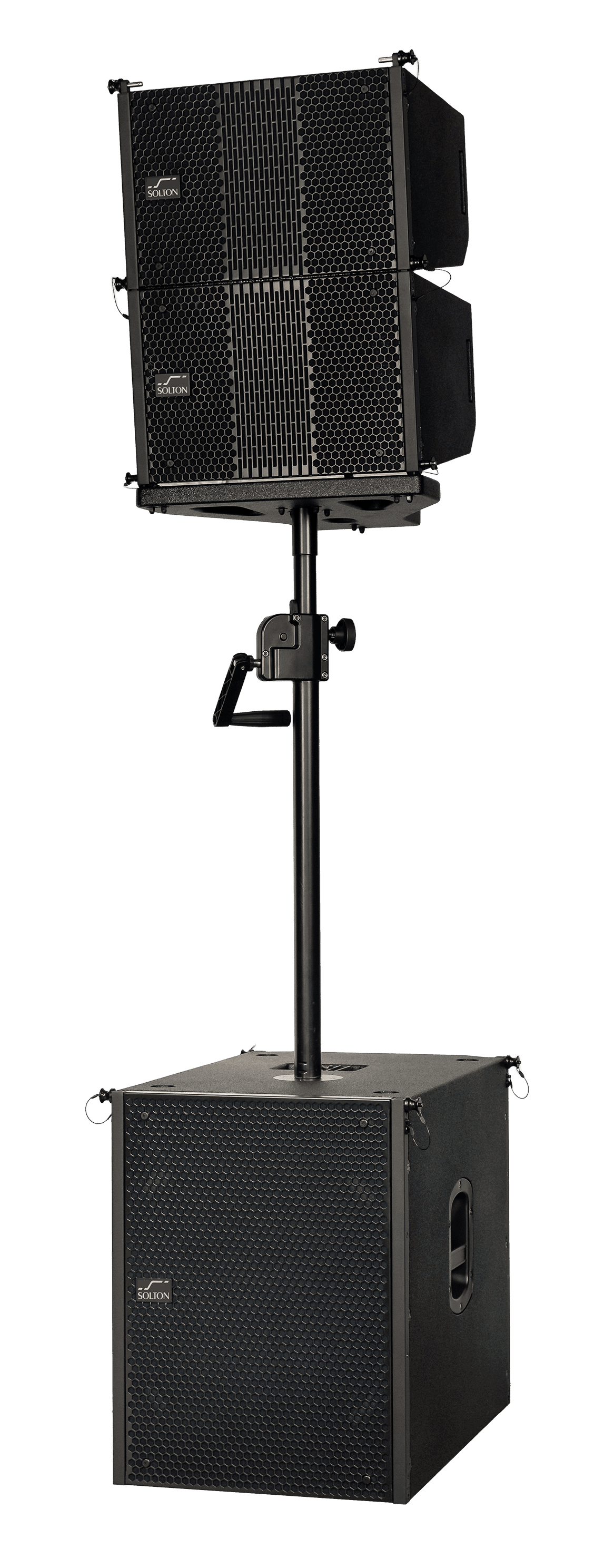

Versatile configuration options
Cardioid Preset
- Article Number 12012
- Type Selfpowered, Single 15", bass-reflex, flyable subwoofer
- Frequency Range (-10dB) 35 Hz -120 Hz
- Frequency Response (+- 3dB) 40 Hz - 120 Hz
- Coverage Pattern Omni
- Power Handling 1000 W continuous, 4000 W peak
- LF Driver 15" woofer
- Crossover 80 Hz, 100 Hz, 120 Hz, Cardioid
- Protection Limiter, over voltage protection
- Active Tuning / Features Volume, DSP, Power switch
- Enclosure Birch plywood
- Finish Black polyurea coating, IP 45
- Fittings 2x Handles, rigging system, M20 flange
- Protective Grille Powder coated, black perforated steel with acoustic cloth inside

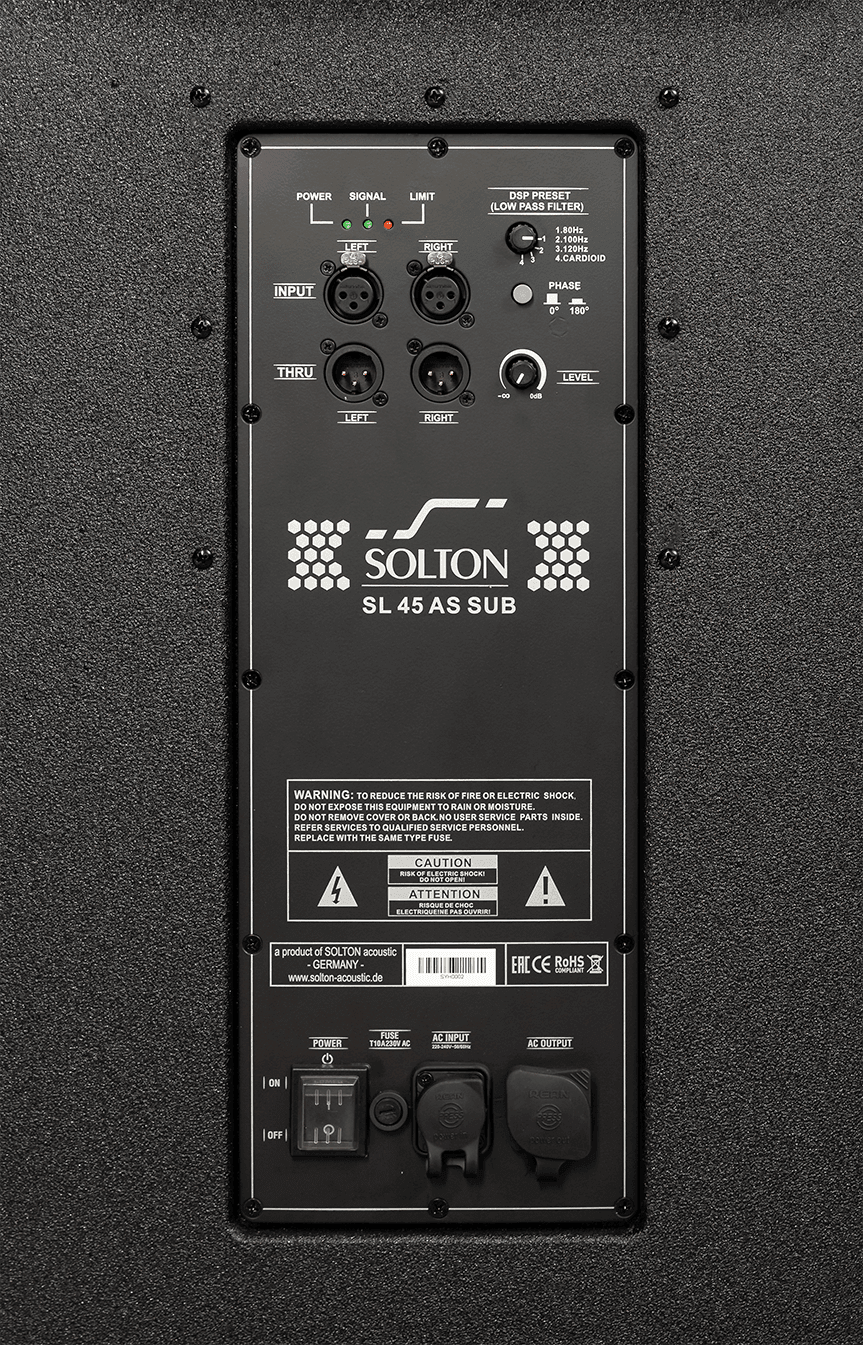

- Connectors XLR in/out, Power True in/out
- Dimensions mm (WxHxD) 450 x 585 x 698
- Weight 43 kg
- EAN / GTIN 04262552320623
Theaters
Arenas and stadiums with reasonable speaker quantity
Medium size festivals
Clubs
Corporate events
Contemporary churches
- Art. Nr. 12574
FLC K4A Flying Frame for KARAT K4A and SUB K 15A
