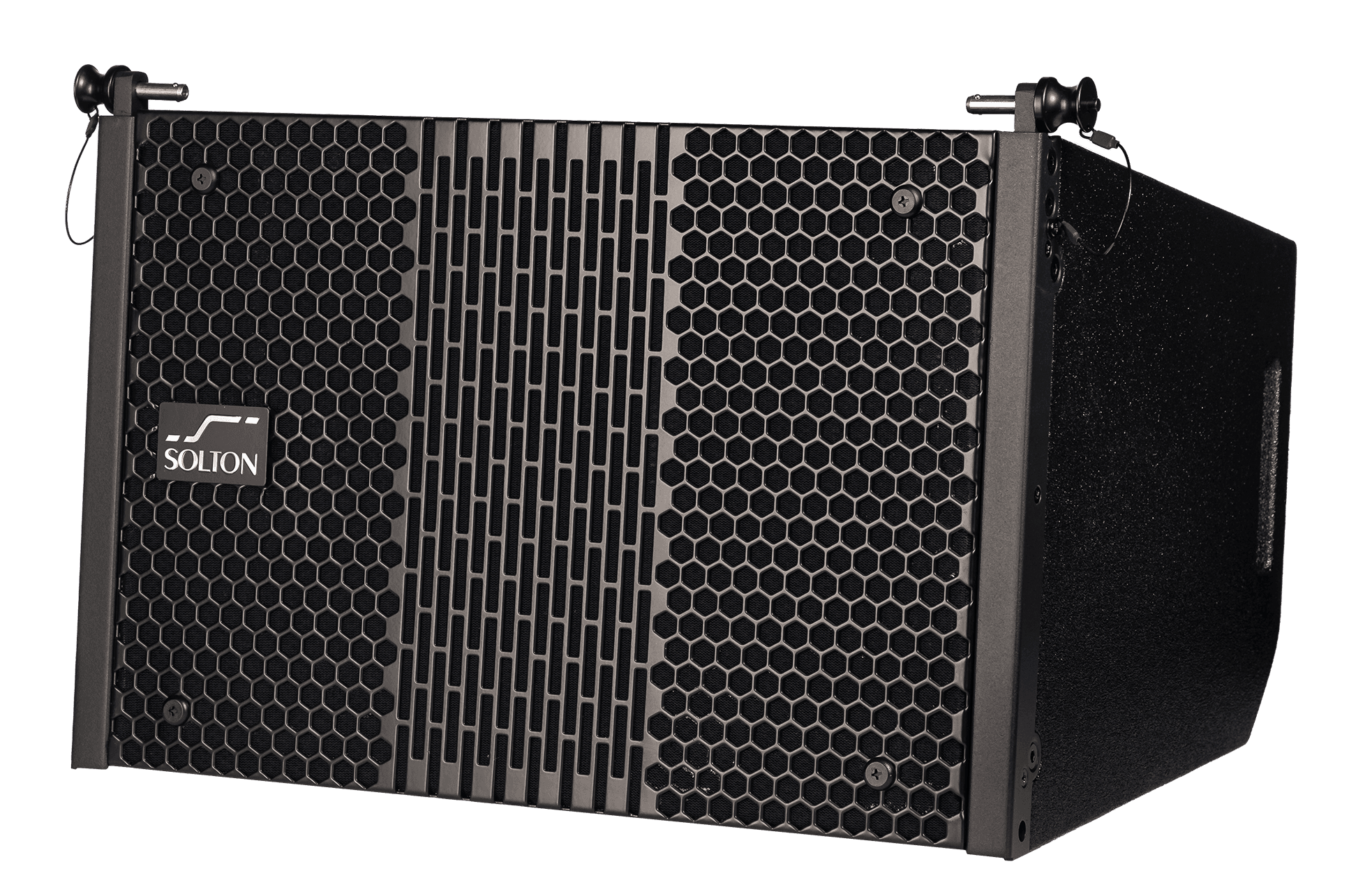

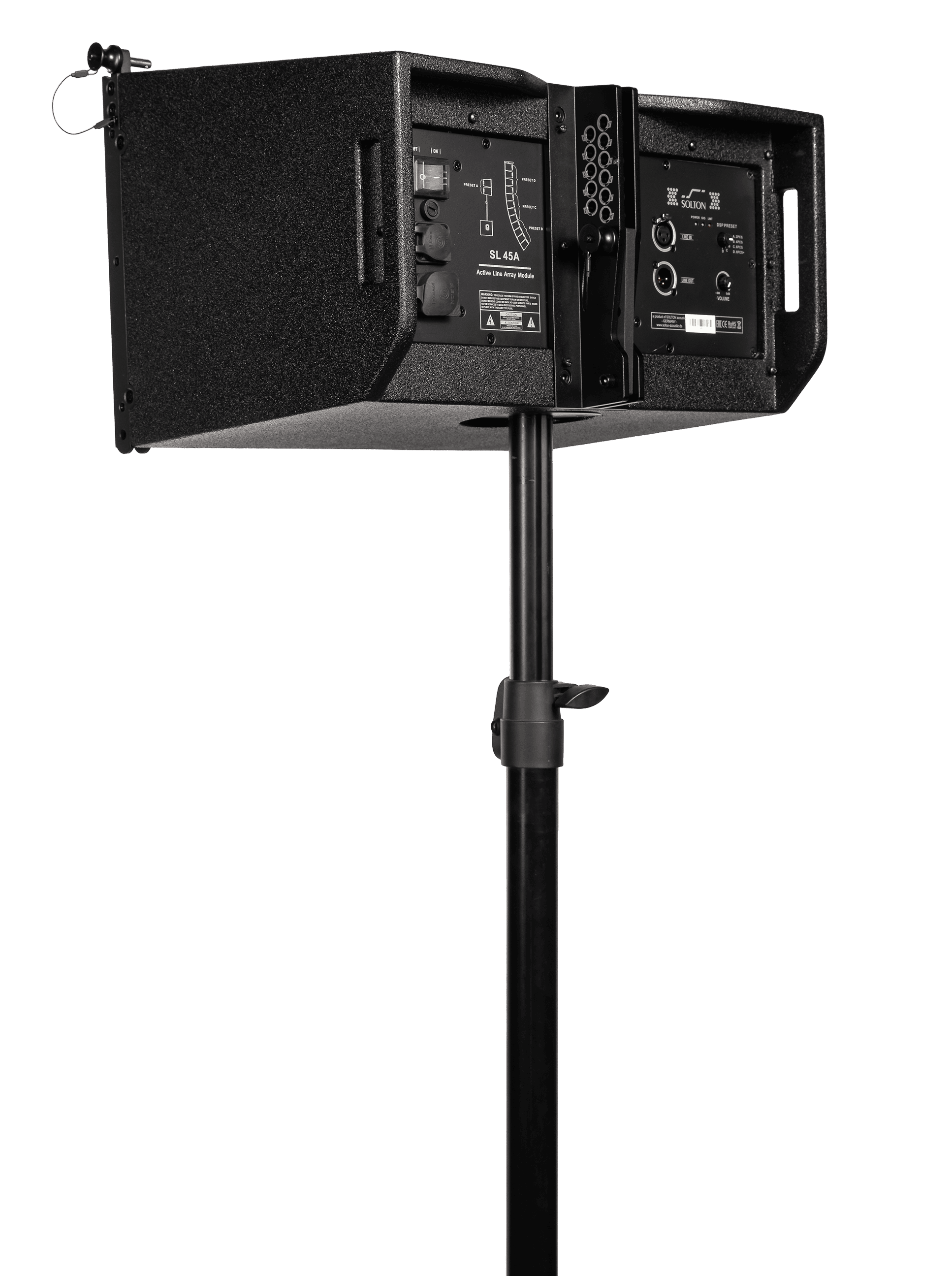

KARAT K4 A – Compact Touring System with Outstanding Vocal Clarity

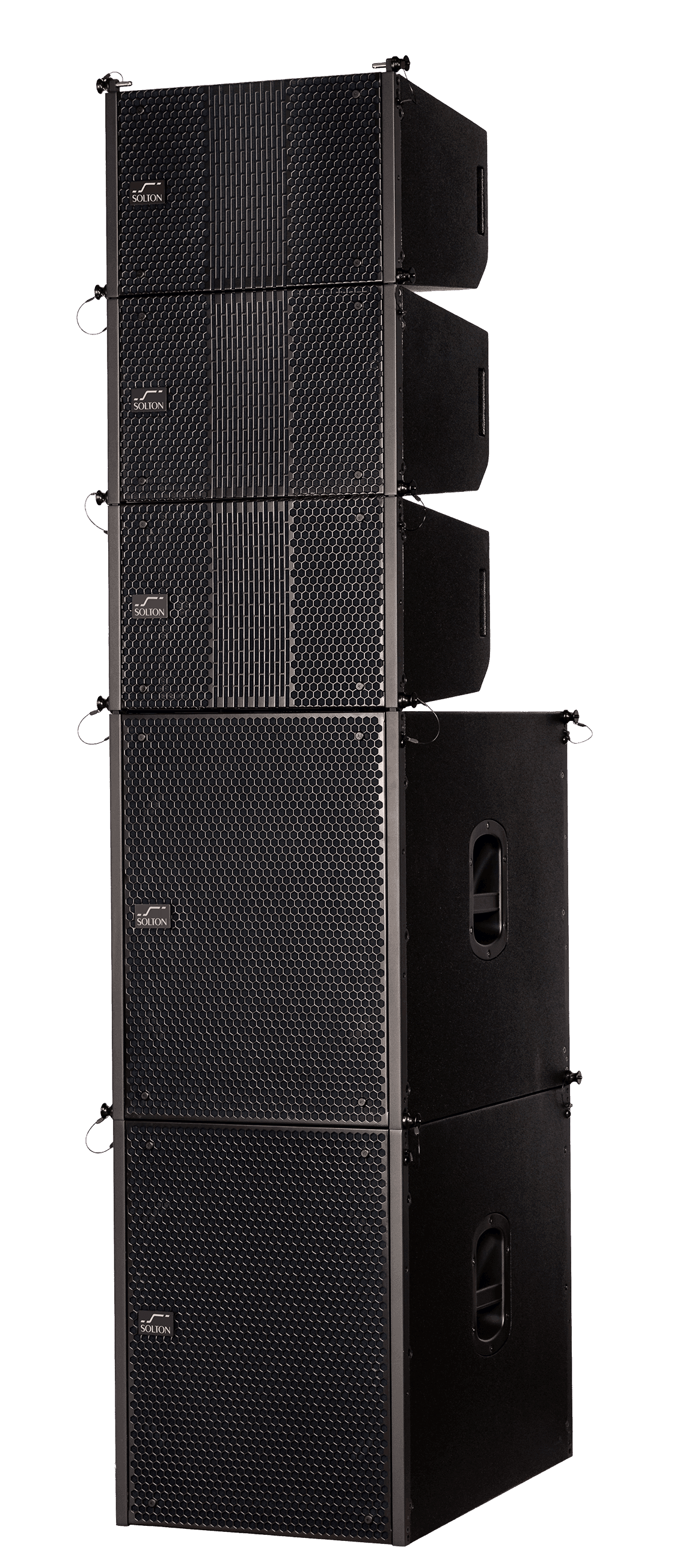

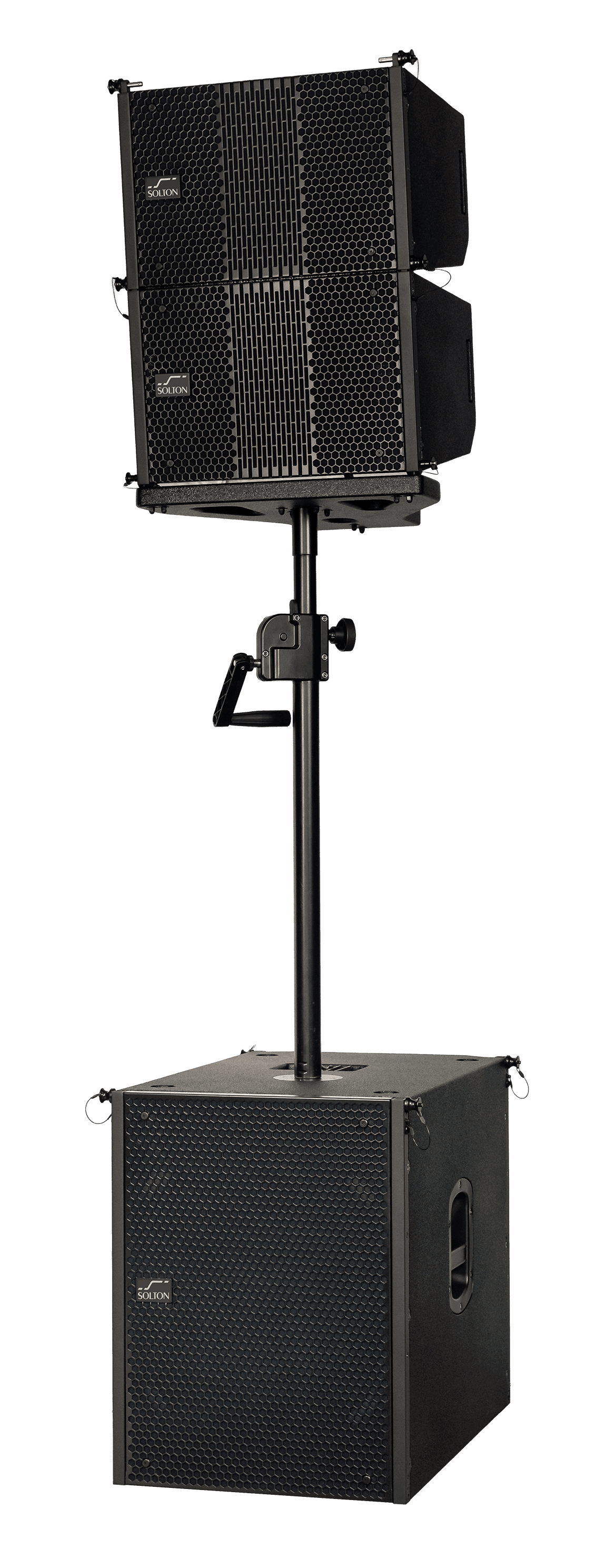

The KARAT K4 A is a powerful bi-amped 2-way active system, specifically engineered for demanding touring applications both indoors and outdoors. Its design places a strong emphasis on exceptional vocal intelligibility, even in challenging acoustic environments. Equipped with four 5” neodymium woofers and two high-performance 1.75” compression drivers, the system delivers impressive precision and clarity. The meticulously developed time-coherent waveguide ensures consistent sound dispersion and optimal phase alignment. The integrated 600-watt Class-D amplifier provides excellent audio performance with high efficiency. This is further enhanced by an advanced DSP system featuring FIR filtering, enabling precise control and finely tuned sound reproduction. Thanks to state-of-the-art neodymium technology, the KARAT K4 A not only excels acoustically but also stands out with its remarkably low weight—making it ideal for easy handling, flexible installations, and flown applications. With an IP45 rating, the system is well-suited for demanding outdoor use. Perfect Low-End Extension: SUB K 15 A The SUB K 15 A is the ideal flyable subwoofer complement to the KARAT K4 A array system. It enhances the setup with powerful, precise low-frequency performance, delivering a balanced and impactful overall sound.
High output Line Array element
Selfpowered operation
Stacked operation possible
High quality, low distortion HF compression drivers
Very stable horizontal coverage
IP45 rating
FIR Filtering
Versatile configuration options
- Article Number 12011
- Type Two-way, selfpowered, fullrange, line array element
- Frequency Range (-10dB) 70 Hz - 20 kHz
- Frequency Response (+- 3dB) 75 Hz -18 kHz
- Coverage Pattern H 100° x V 10° nominal
- Power Handling 600 W continuous, 2400 W peak
- HF Driver 2x 1.75" VC Neodym compression driver, horn loaded with waveguide
- LF Driver 4x 5" Neodym woofer
- Protection Limiter, over voltage protection
- Active Tuning / Features Volume, DSP, Power switch
- Enclosure Birch plywood
- Finish Black polyurea coating, IP 45
- Fittings 2x Handles, rigging system, flange
- Protective Grille Powder coated, black perforated steel with acoustic cloth inside

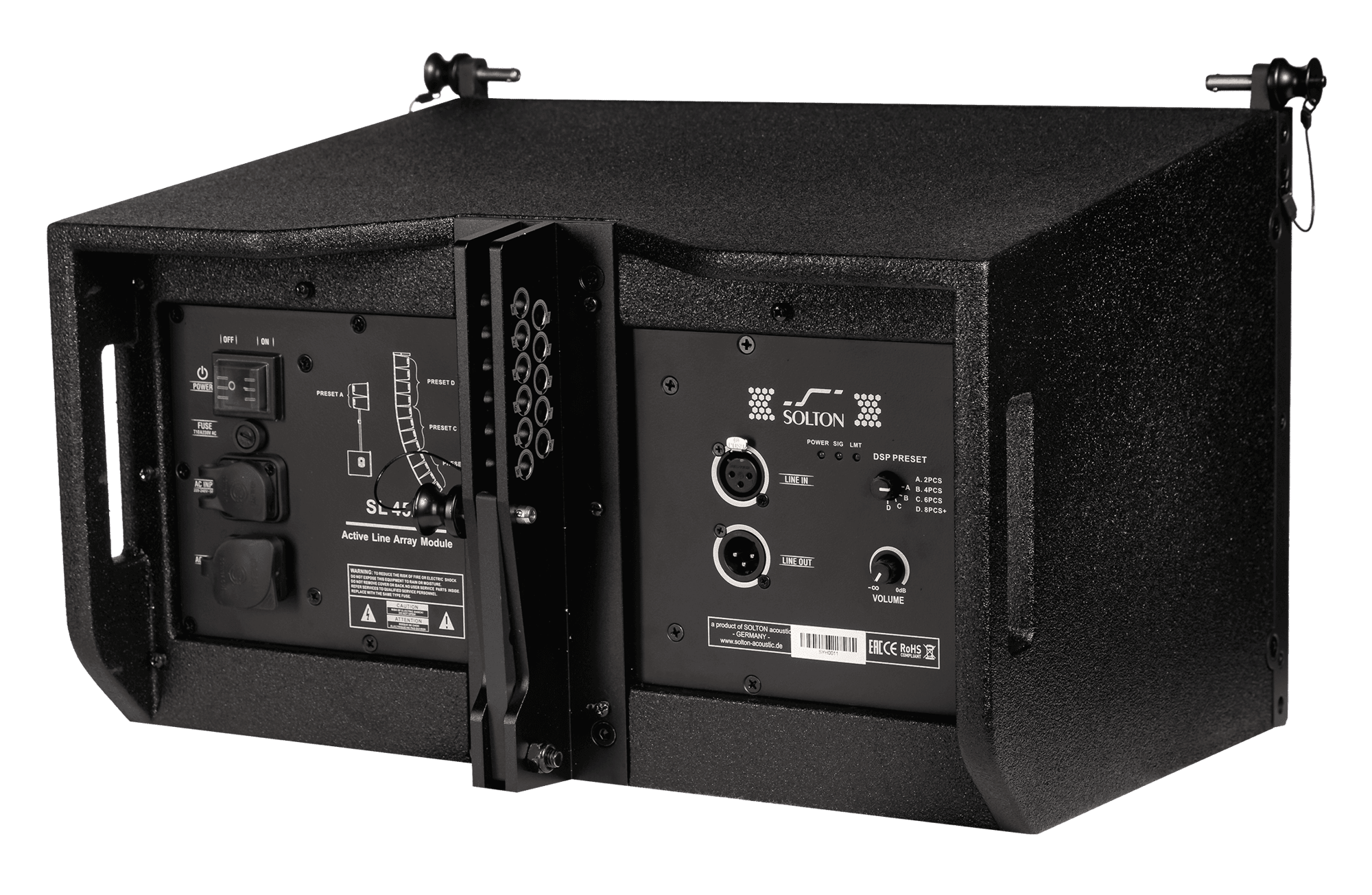

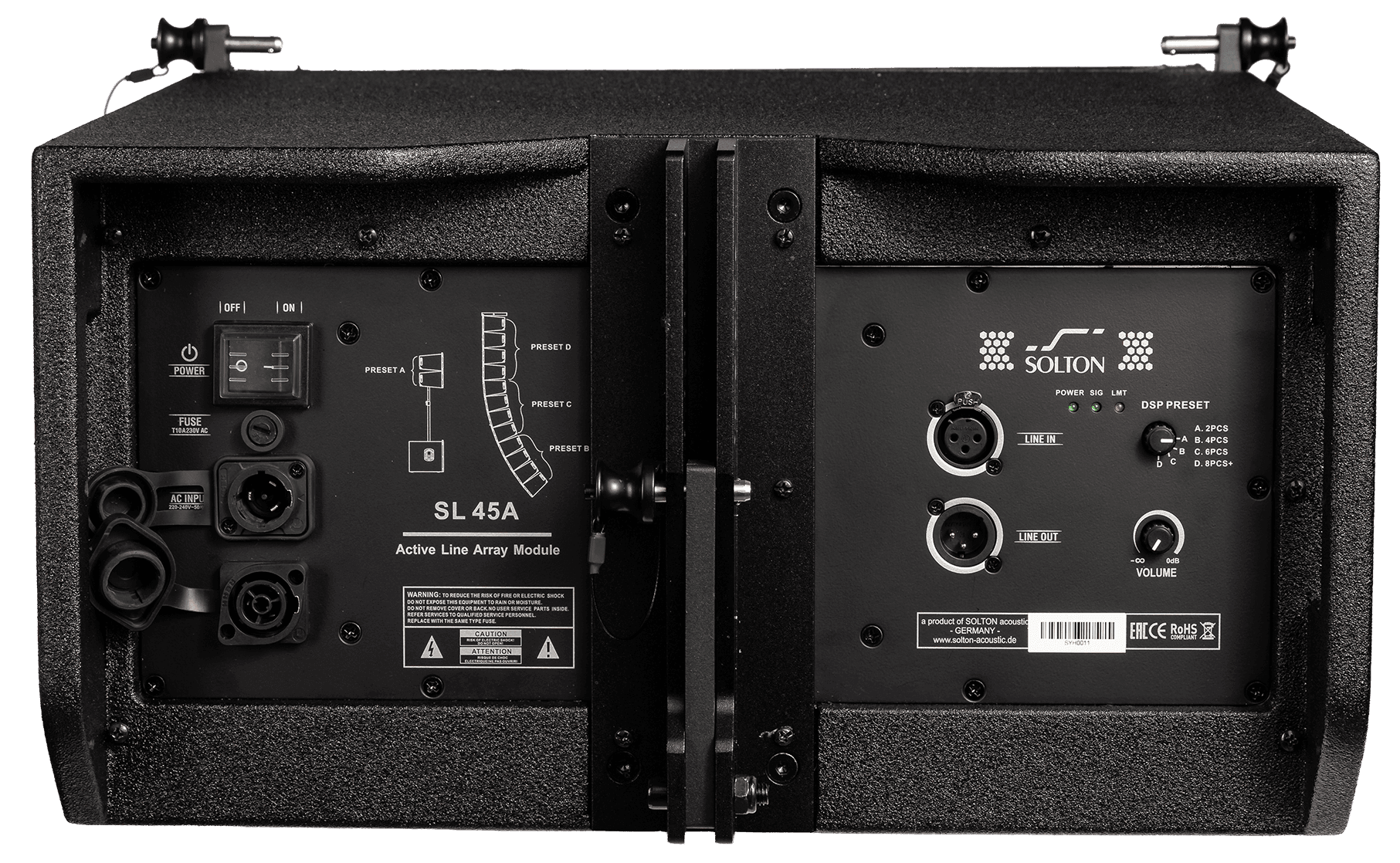

- Connectors XLR in/out, Power True in/out
- Dimensions mm (WxHxD) 450 x 364 x 295
- Weight 17 kg
- EAN / GTIN 04262552320616
Theaters
Arenas and stadiums with reasonable speaker quantity
Medium size festivals
Clubs
Corporate events
Contemporary churches
- Art. Nr. 12575

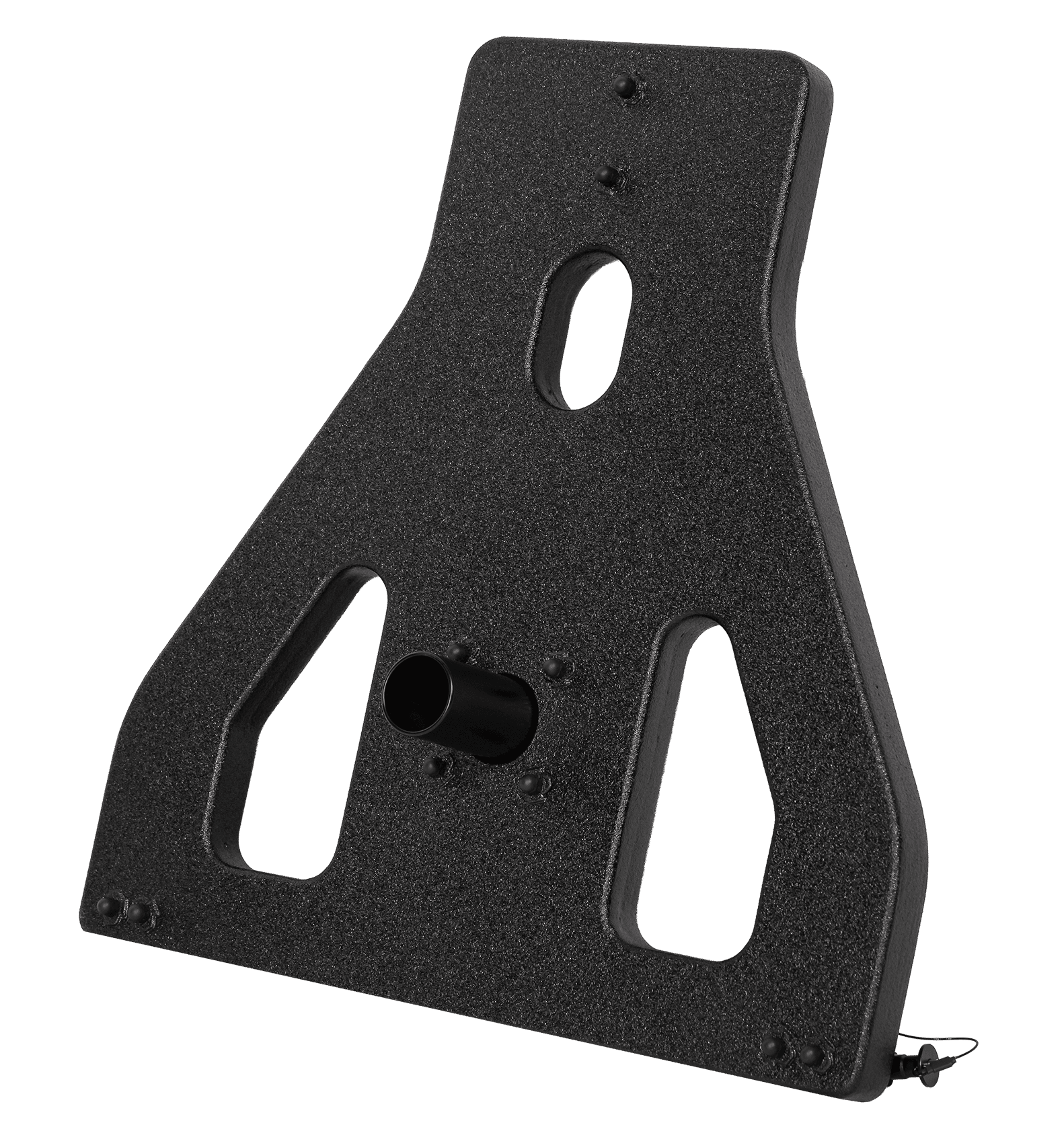

ST K4A Wood stacking Frame for KARAT K4A (max. 2 modules)
- Art. Nr. 12574

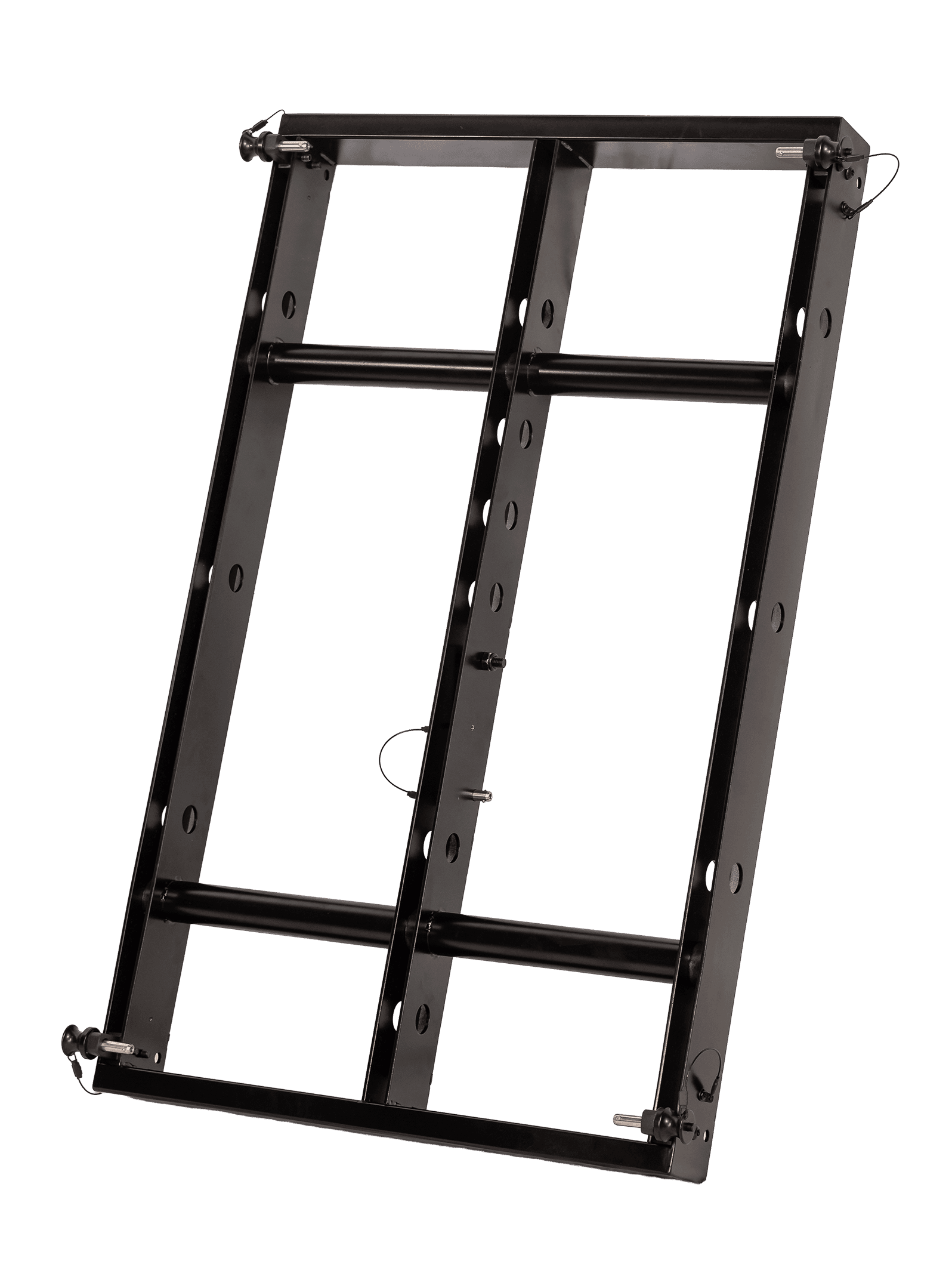

FLC K4A Flying Frame for KARAT K4A and SUB K 15A
- Art. Nr. 12576

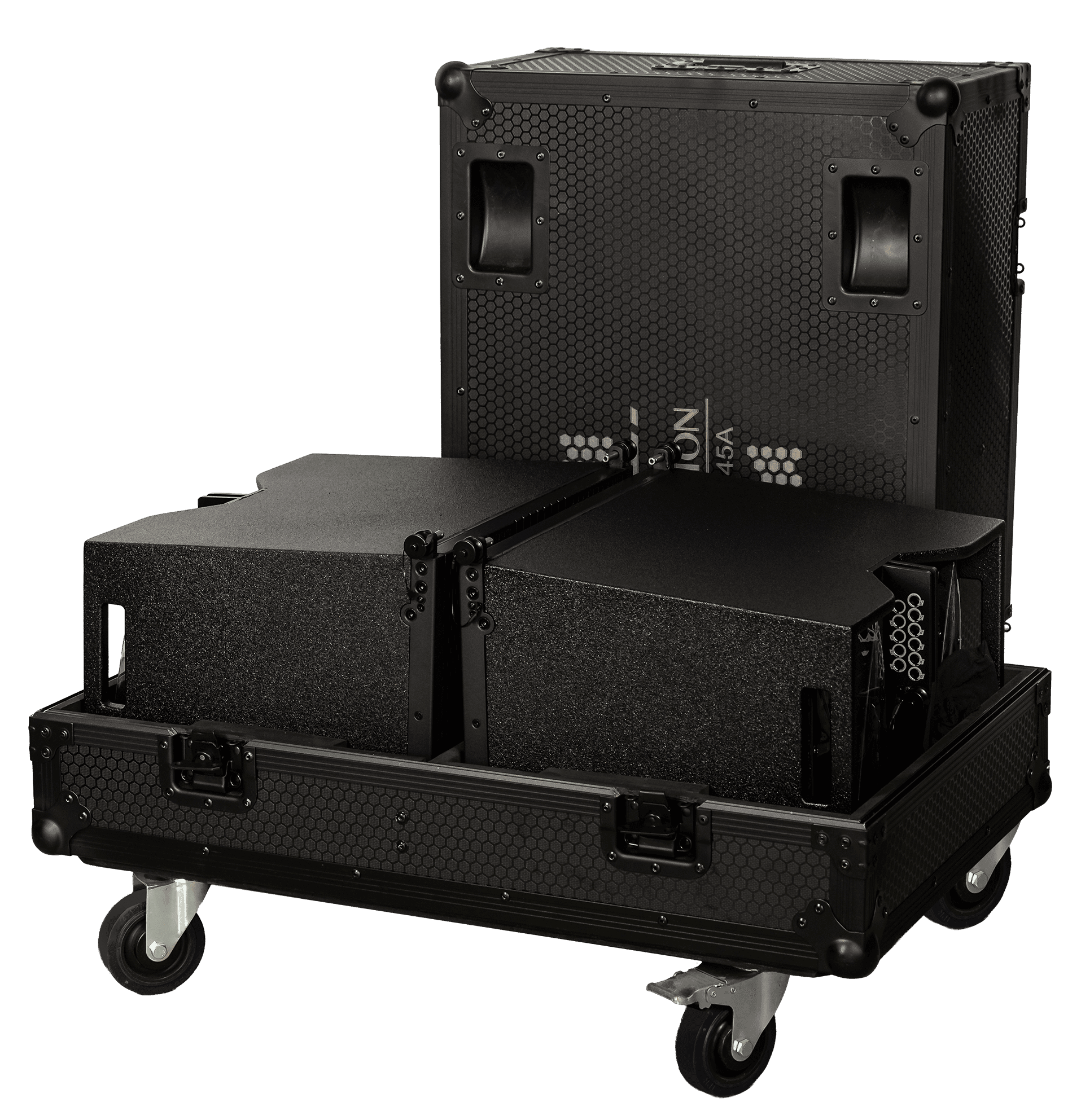

Transport Case K4A Transport-Case for 2x K4 A Line Array Modules
