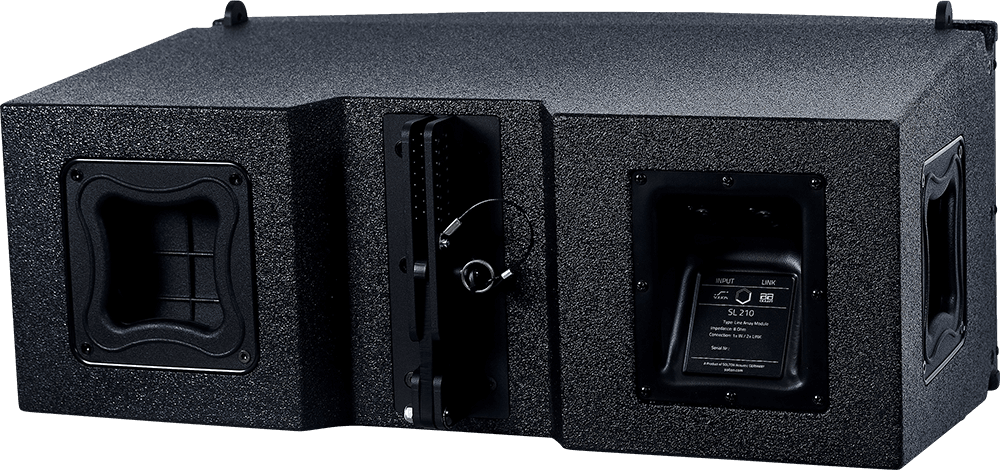

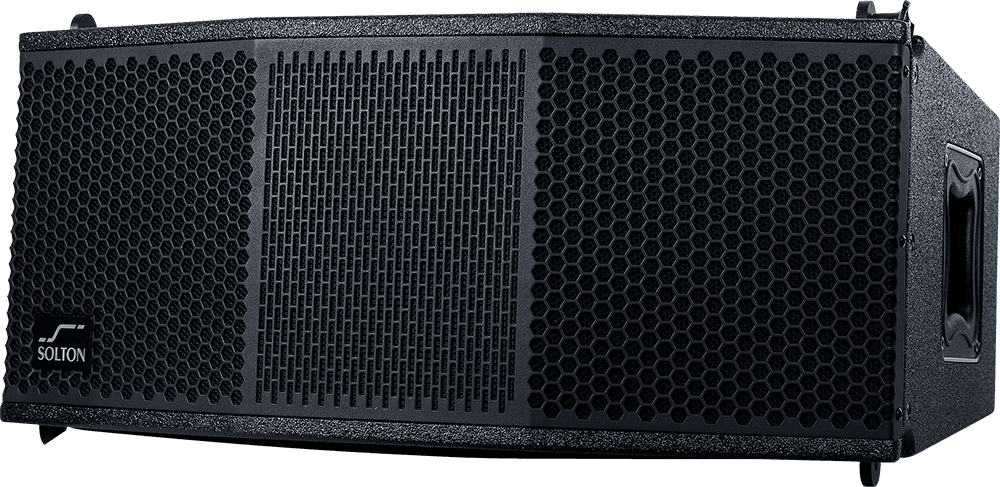

The SL 210 is a 2-way, full range line array cabinet that combines superior sound quality with easiness and flexibility in a simple system.With a 100°H x 10°V nominal directivity pattern it combines high output capability with excellent sound performance in a compact enclosure, made of 15/21 mm birch plywood.It features two powerful 10” / 2,5” voice coil Neodym drive units for the mid-bass range, and one Beyma Neodym low-distortion compression driver with a 2,88” voice coil and 1,4“ exit for extended high frequency response.The line wave-forming waveguides of HF driver is hornloaded.An advanced passive crossover, with PTC driver protection, matches the components working perfectly together.The SL 210 vertical line array element is suited to a wide variety of mobile and installed applications where a flexible and easy to use vertical array systems is needed. Flying and Stacking operation possible.Ease Focus GLL Files are available for this cabinet.
High output Line Array element- Passive operation

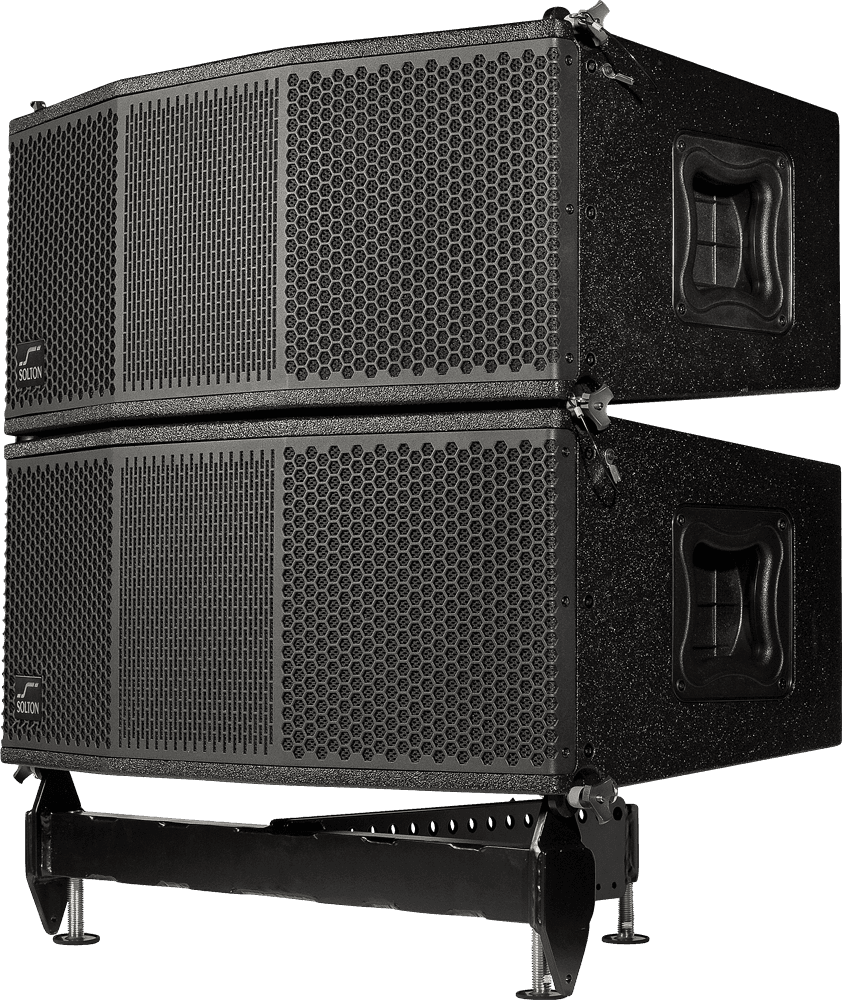

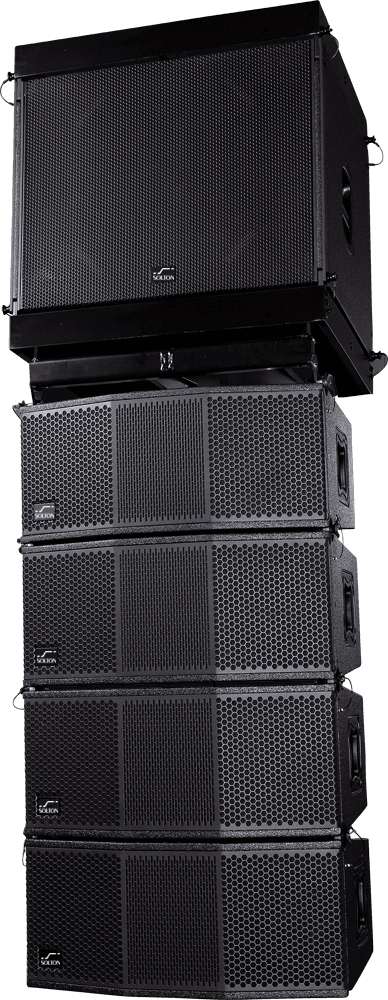

- Stacked operation possible
- Fullrange capability
- High quality, low distortion HF compression drivers
- Very stable horizontal coverage
- Advanced crossover with HF protection

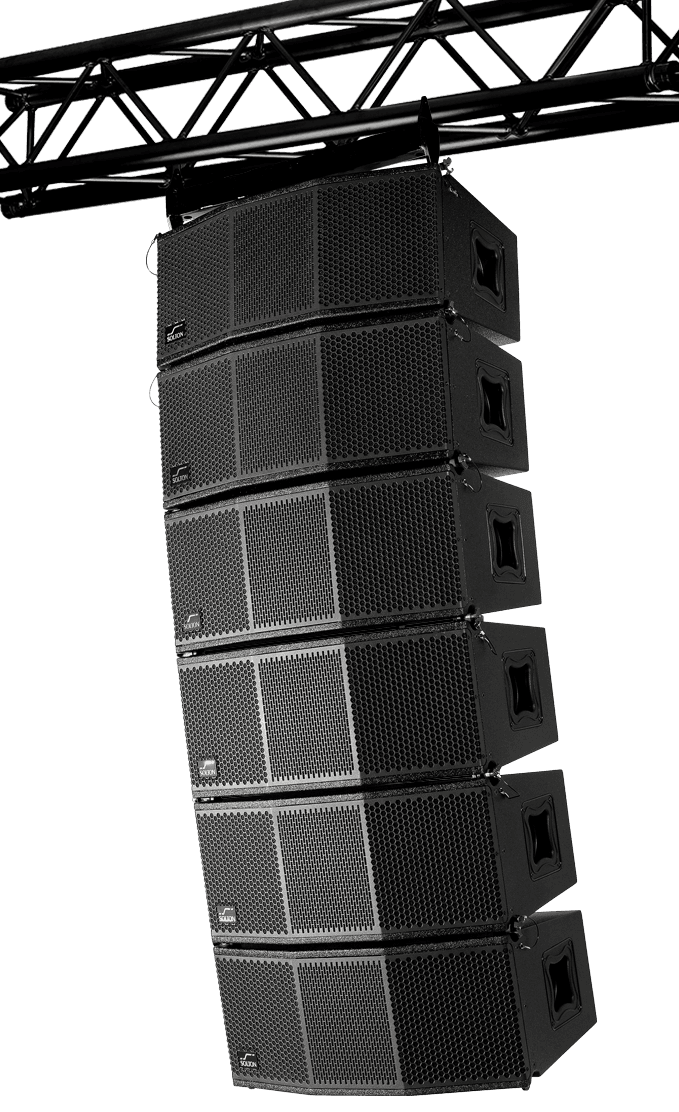

- Fast, 3-point flying rigging system for up to 12 enclosures
- Compact size
- Only 23 kg
- Article Number 12007
- Type Two-way, passive, fullrange, line array element
- Frequency Range (-10dB) 55 Hz - 20 kHz
- Frequency Response (+- 3dB) 60 Hz -18 kHz
- Coverage Pattern H 100° x V 10° nominal
- Power Handling 800 W continuous, 3200 W peak
- System Sensitivity (1w/1m) 104 dB
- Maximum SPL (Calculated at 1m) 133 dB continuous, 139 dB peak
- HF Driver 3" VC Beyma Neodym compression driver, horn loaded with waveguide
- LF Driver 2 x 10", 2,5" VC Neodym
- Nominal Impedance 8 ohms
- Crossover 1 kHz, passive
- Protection PTC driver protection
- Enclosure 15/21 mm birch plywood
- Finish Black polyurea coating, IP 54
- Fittings 3x Handles, Integrated 3 Point quick lock rigging system
- Protective Grille Powder coated, black perforated steel with acoustic cloth inside
- Connectors 2x Speakon NL 4, 1+/1- / 2+/2- to Sub
- Dimensions mm (WxHxD) 680 x 294 x 430
- Weight 23 kg
- Theaters
- Arenas and stadiums with reasonable speaker quantity
- Medium size festivals
- Clubs
- Corporate events
- Contemporary churches
- Art. Nr. 12531

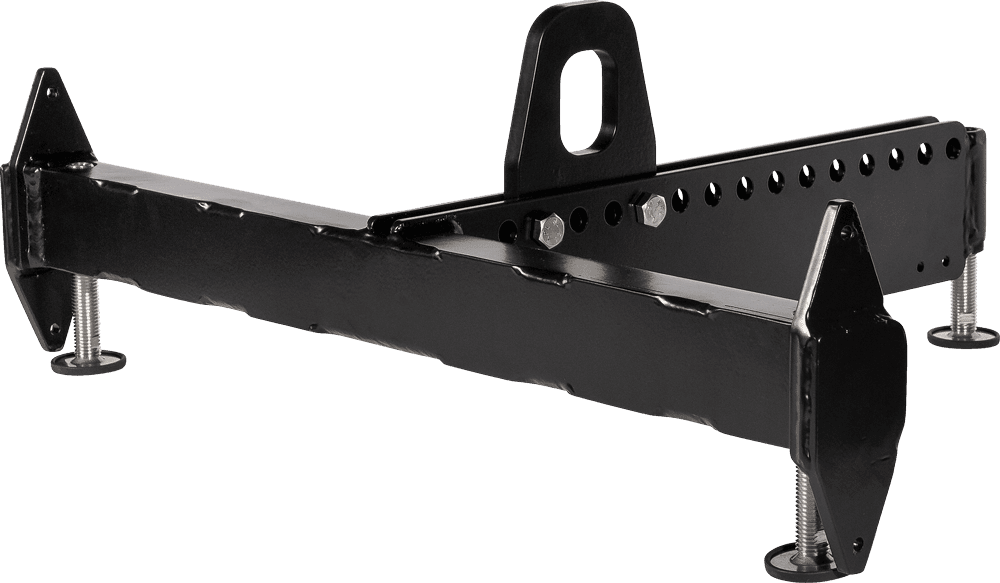

FLC 210 FST Flying & stacking frame for SL 210 Line Array Modules
